 APPLICATIONS:
THE PRODUCTS ARE WEAVED WITH GLASS FIBRE WITHOUT ALKALI INTO SLEEVES, AND ON WHICH THE SILICON RUBBER IS PAINTED, THROUGH HEATING AND SULFURATION OT BE INSULATION SLEEVES, WHICH HAS A CERTAIN RESISTANCE ABILITY, HIGH THERMAL CLASS, AND ARE EXREMLY COLD BEARING AND ELESTIC. IT APPLIES TO THE WIRES DISTRIBUTING AND MECHNICAL PROTECTION FOR CLASS H ELECTRIC MOTORS, APPLIANCES, SPECIAL LIGHT BULBS, ELECTRIC IRON, AND ELECTRIC COOKERS AND SOME OTHER ELECTRIC APPLIANCES. |
|

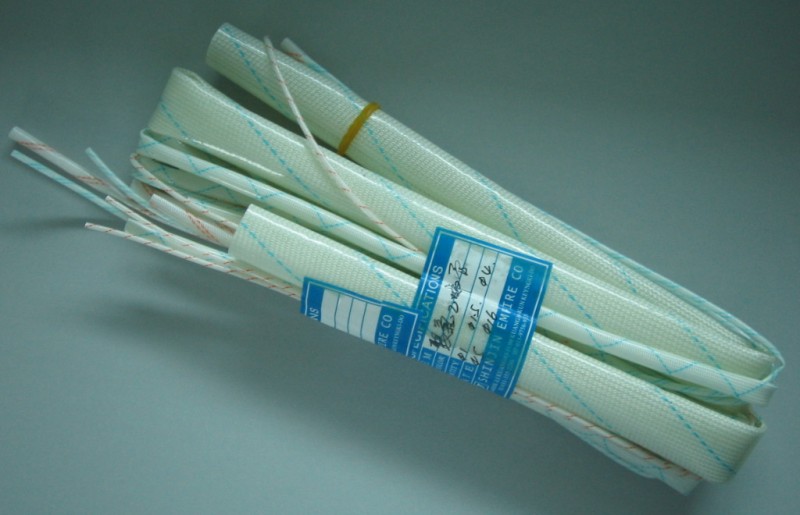

| SILICON RUBBER GLASS FIBRE (PAINT) SLEEVES | |
|
|
| SILICON RUBBER GLASS FIBRE (PAINT) SLEEVES PROPERTIES AND TECHNICAL DATES: |
| NAME OF TECHNICAL DATES |
UNIT |
DATES |
| THERMAL CLASS |
℃ |
200℃ |
| RESISTANCE |
MΩ |
105 |
|
BREAKAGE
VOLTAGE |
ROOM TEMPRATURE |
KV |
MAX3.0, MINI2.5 |
| HIGH EMPRATURE |
KV |
2.2, 1.7 |
| WET AND HOT |
KV |
2.5, 2.0 | | |
|
|
 |
APPLICATIONS:
THIS PRODUCT IS WEAVED WITH GLASS FIBRE WITHOUT ALKALI AND COVERED WITH PVC RESIN, HEATED AND PLASTIC,TO BE THE INSULATION SLEEVES.
THIS PRODUCTS ARE WITH EXCELLENT ISOLATION PROPERTIES AND CAN ENDURE HEMICAL WELLARE ALSO PREFERABLY SOFT AND SPRING, WHICH ARE APPLIED TO ELECTRIC MOTORS, APPLIANCE, METERS,MEDICAL EQUIPMENTS, WIRLESS CABLE,TV SETS AND ELECTRIC FANS,WASHING MACHINES'INSULATION AND MECHANICAL PROTECTION.
|
|
|

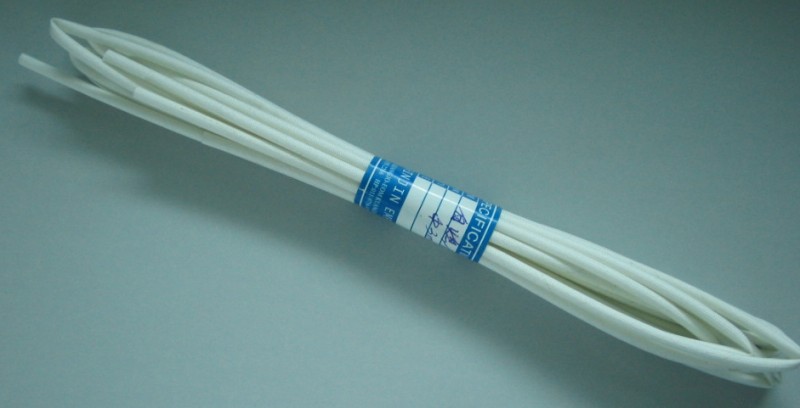

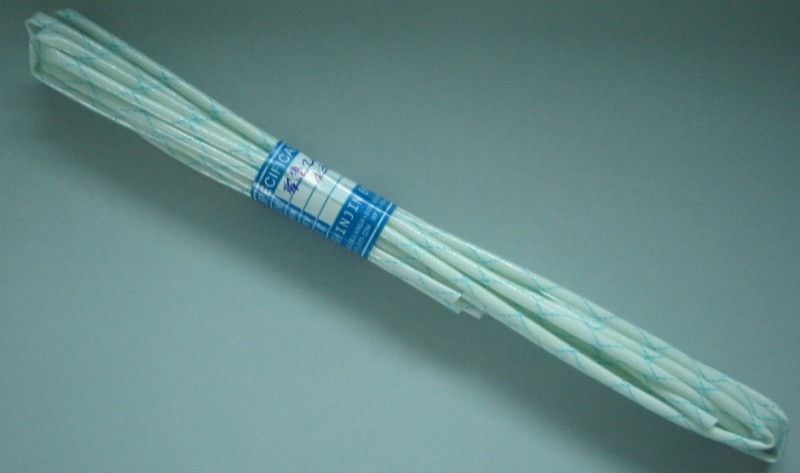

PVC GLASS FIBRE INSULATION SLEEVES | |
|
|
| PVC GLASS FIBRE INSULATION SLEEVES TECHNICAL DATES: |
| DATES NAMES |
UNITS |
DATES |
| THERMAL CLASS |
℃ |
105℃ |
| RESISTANCE |
MΩ |
103 |
|
BREAKAGE
VOLTAGE |
ROOM TEMPRATURE |
KV |
3.02.5 |
|
HIGH TEMPRATURE |
KV |
1.5, 1.2 |
| AFTER BEING DAMPED AND HEATED |
KV |
1.2, 0.8 | | |
|
| |
 |
APPLICATIONS:
COVERED WITH ORGNIC SILLICON MUTUAL AGGREGATION RESIN.WITH EXCELLENT ISOLATION PROPERTIES, SOFT AND ELESTIC.
ELECTRIC MOTORS WITH THERMAL CLASS H, APPLIANCE, TV SETS AND ELECTRIC APPARATUS,WIRES DISTRIBUTING, INSULATION PROECTION AND SO ON.
|
|

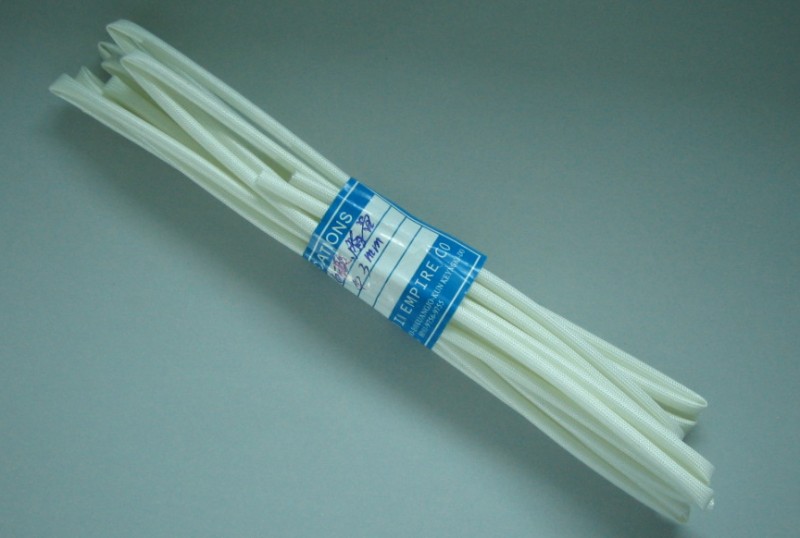

| GLASS FIBRE SELF-SLAKING INSULATION SLEEVE | |
|
|
| GLASS FIBRE SELF-SLAKING INSULATION SLEEVES TECHNICAL DATES: |
| DATES NAMES |
UNITS |
DATES |
| SELF-SLAKING |
℃ |
NO desquamate AND COLOR CHANGING UNDER CONSISTENT TEMPRATURE 250 ℃±3℃ |
| RESISTANCE |
SECOND |
BELOW 3.5MM<10 SECONDS 4~ 8MM<15 SECONDS |
|
BREAKAEⅠ
VOLTAGEⅡ |
KV |
GENERAL>3KV |
| KV |
GENERAL>1.2KV | | |
|
| |
 |
 |
 |
|

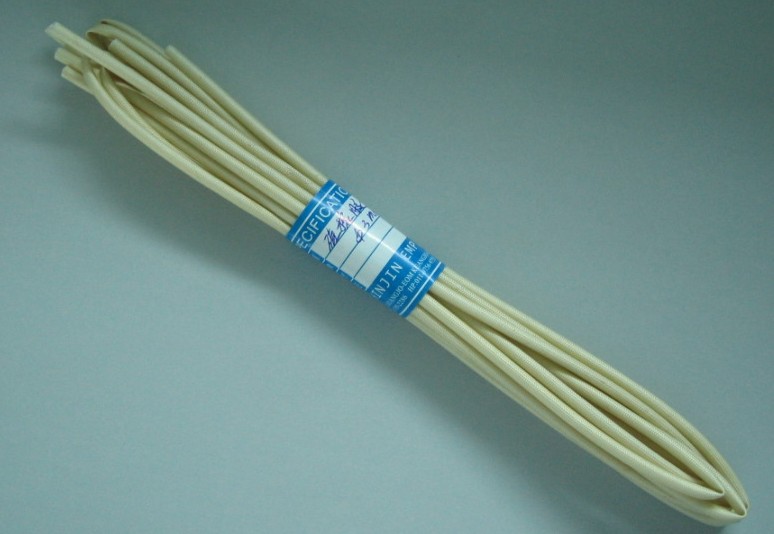

Acrylic acid polyester tube |
Glass fibre self-slaking
insulation sleeves |
|
 |
 |
|
|
Glass fibre self-slaking
insulation sleeves |

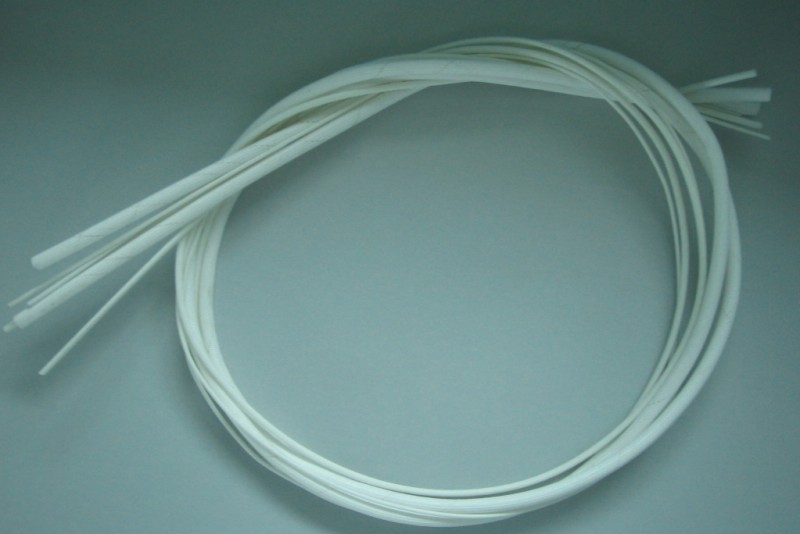

Polyvinyl-chloride
insulating sleeve |
|
|
|
|
|
|
|
| | |
|
|
